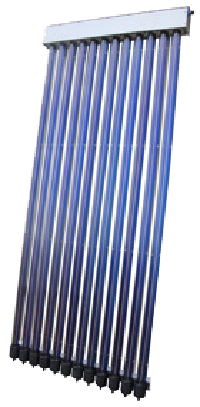

- Very high efficiency in winter as well as in summer;
- Absorbing sheet metal cover by TINOX layer what effectively changes sunrays into the heat;
- External part of collector tube is covered by anti-reflection layer what elarges its efficiency during significant cloudiness;
- Perfect absorber, well-thought-out construction of closing and very good thermal isolation causes makes that product of the most effective among all of this kind of appliances presently available on the market;
- The closing of the vacuum- collector has been made of steinless steel;
- Simple assembly sets adjusted to every type of roof;
| Dimensions | Value |
|---|
| Dimensions[height x width x depth] [mm] | 2186 x 1000 x 124 | | Weight [kg] | 33 | | Surfaces | |
|---|
| Building surface [m2] | 2,05 | | Surface brutto [m2] | 1,28 | | Absorber's surface [m2] | 1,10 | | Absorber | |
|---|
| Material | copper | | Thickness [mm] | 0,2 | | Selective layer | TINOX | | Absorbtion degree | 0,95 | | Emission degree | 0,05 | | Absorber capacity [dm3] | 1,5 | | Heat carrier | Liquid for vacuum collectors | | Longitudinal pipes of absorber [mm] | 12 units x φ10 x 0,3 mm/φ6 x 0,3 mm | | Collecting pipies [mm] | 1 unit x φ18 x1,0 mm, 1 unit x φ22 x 1,0mm | | Thermal isolation | |
|---|
| Material | Mineral wool | | Thickness [mm] | 35 | | Tube diameter [mm] | 56 | | Tube wall thickness [mm] | 1,8 | | Additional information | |
|---|
| Stopping-temperature [°C] | 168 | | Working pressure [bar] | 6 | | Efficiency [%] | 69,1 | | Recommended flow [dm3 / h] | 94 | | Connections number | 2 | | Assembly availability | |
|---|
| Assembly | roof, foundation, wall | | Compliance with standards | |
|---|
| Name of norm | EN 12975 |
|
|
